ในฐานะหนึ่งในผู้ผลิต Window Window Windows คุณภาพสูงมืออาชีพคุณสามารถมั่นใจได้ว่าจะซื้อ หน้าต่างผนังอลูมิเนียมอลูมิเนียมจาก Yingtai อลูมิเนียมและเราจะให้บริการที่ดีที่สุดหลังการขายและการจัดส่งที่ทันเวลา

ส่งคำถาม

รายละเอียดสินค้า

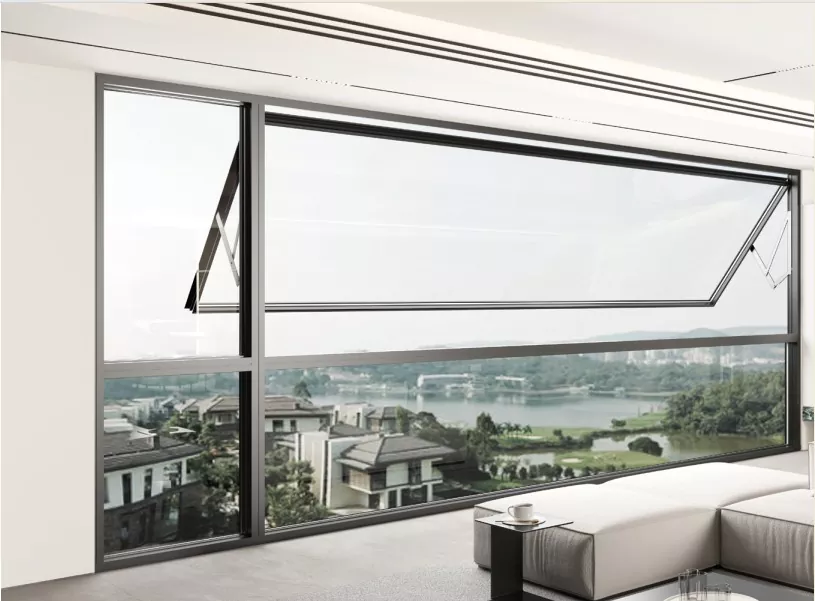

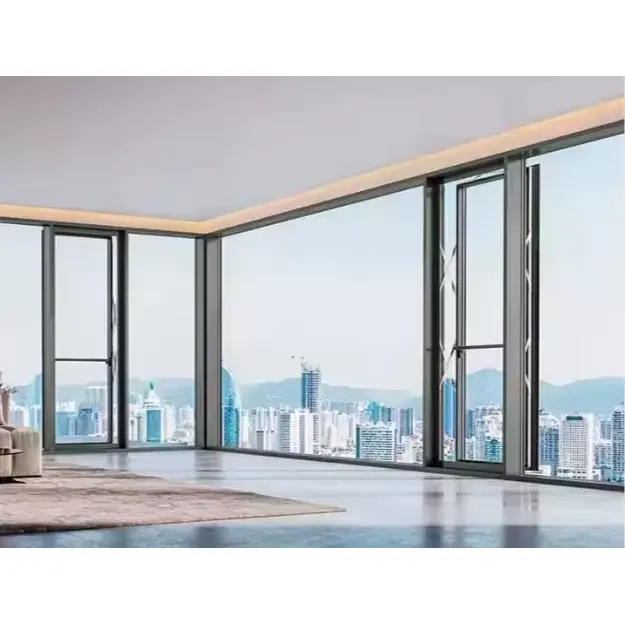

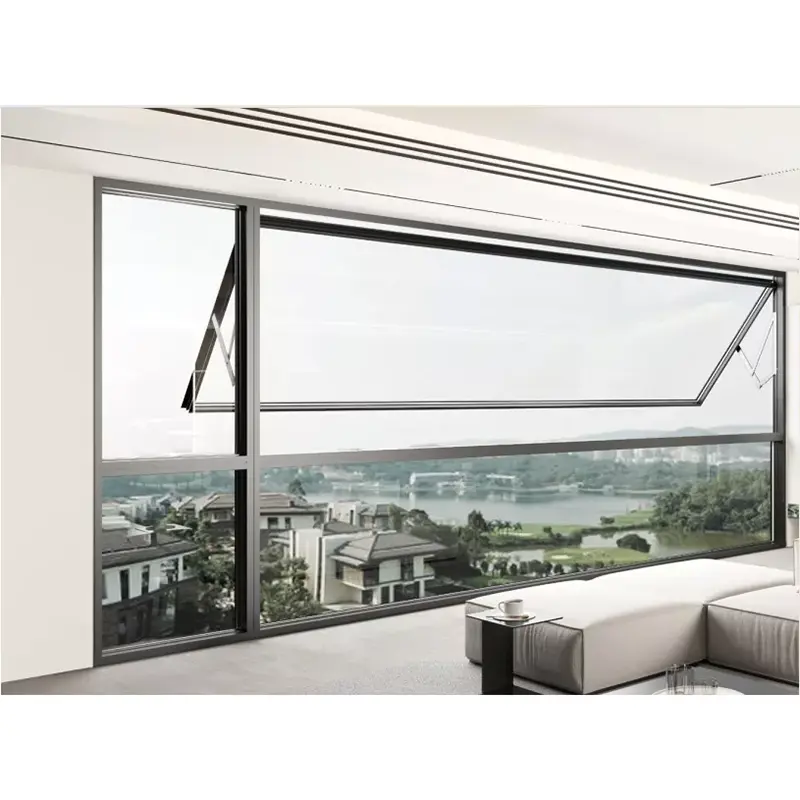

Our panoramic curtain wall windows are an amazing choice as they let in lots of light and allow residents or visitors to see large swaths of the landscape outside.

One Window, One Vista: Framing Cityscapes in Full Canvas.

Parameter (Specification)

Brand Name	Yingtai
Product name	Curtain Wall Windows
Material	Aluminum Alloy
Grade and Temper	6063 6061 (T3-T8)

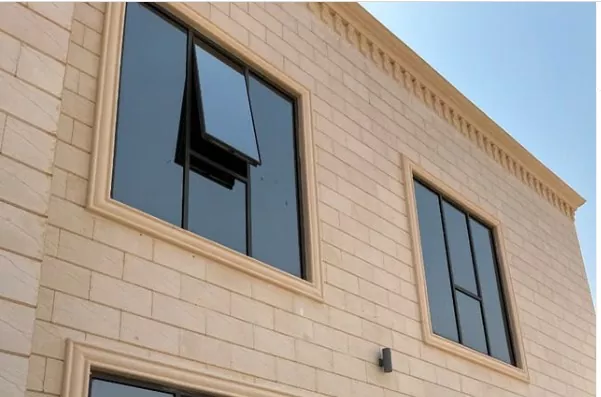

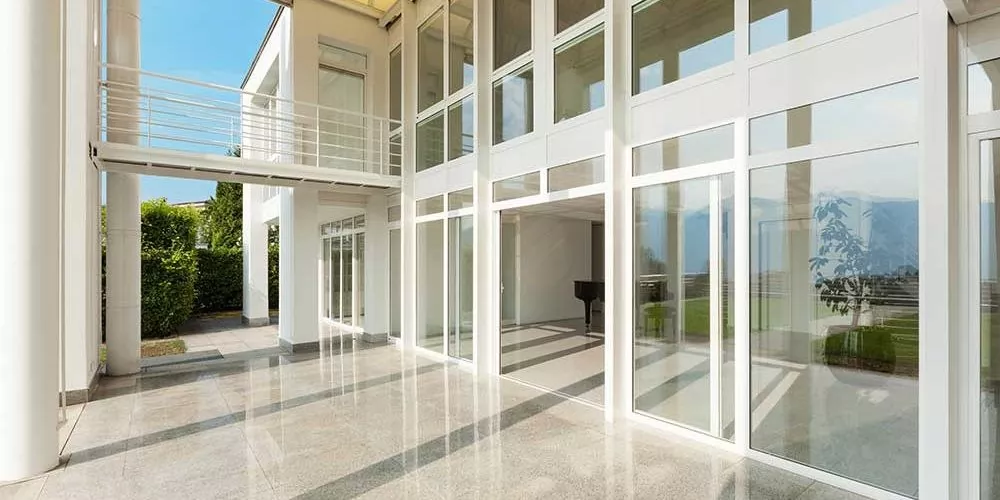

Application	Residential: Luxury villas, apartments, eco-homes

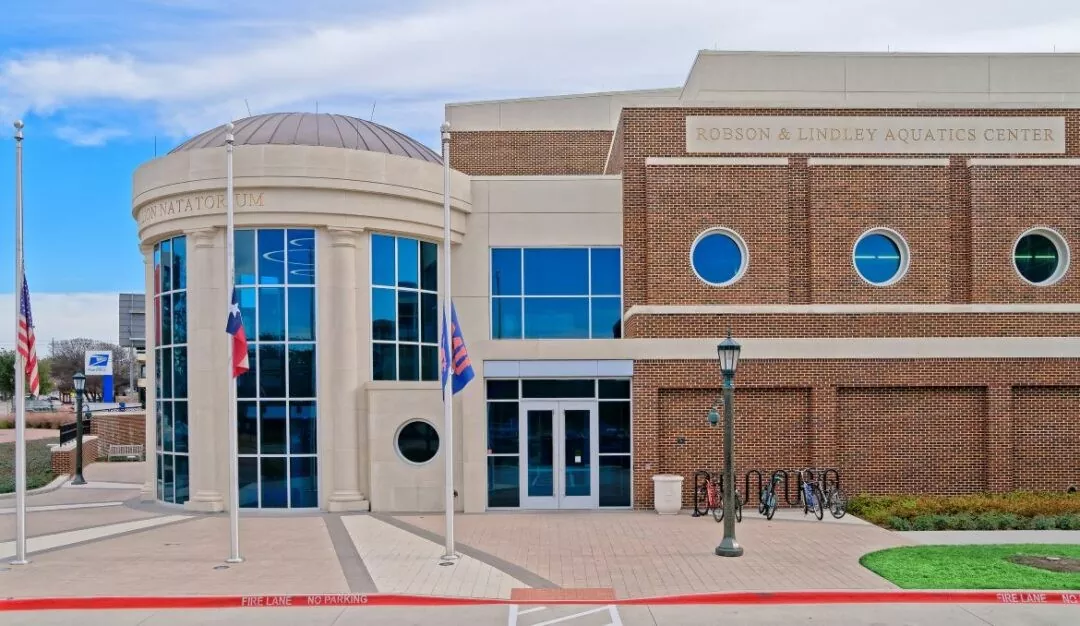

	Commercial: Hotels, offices, hospitals, schools
	Industrial: Factories, warehouses with high ventilation needs
Max Wind Resistance	3,500 Pa (Class C5)
Water Tightness	600 Pa (Grade 8B)
Sound Insulation	42 dB reduction
Fire Rating	EI60 (1-hour integrity)
Glass	4–24 mm thickness; Argon-filled, tempered, or laminated
ANTI-FALL ROPE	Standard Aluminum Anti -fall Rope (Bear weight 150KG )
Available Size	Opening Panel (W:400-750,Ht：400-1500)Each Fixed panel ≤6㎡

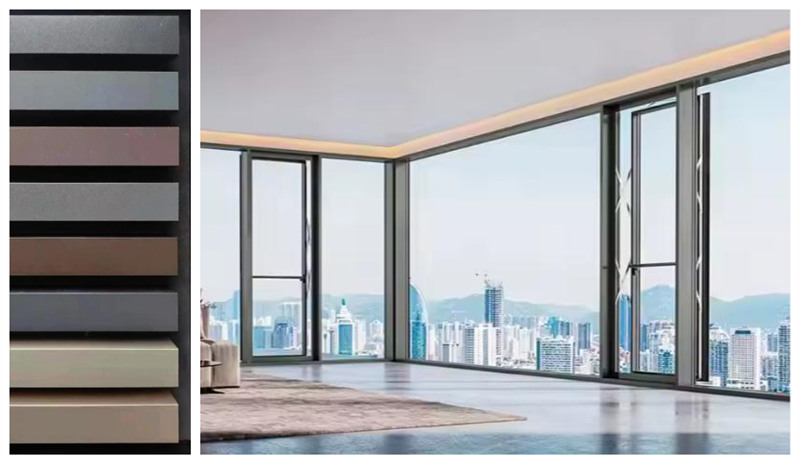

Surface Treatment	Powder Coating, Anodizing; Wooden Grain, PVDF Coating

Key Features:

Our curtain wall windows are perfect if you're looking to maximize sunlight and gain rich, panoramic views.

✔ Primary Aluminum with 3.0mm Ultra-Narrow Frame: Large wall thickness ensures superior stability for the entire window;

✔ 78 Ultra-Narrow Central Mullion (Single/Double Opening, Seamless Integration): Designed to meet load-bearing requirements for large floor-to-ceiling windows and curtain walls;

✔ Ultra-Narrow Opening Sash: Provides a larger ventilation and lighting area;

✔ Exclusive Integrated Central Mullion with Dual Reinforced Screw Design: Unshakable even in storms and heavy rain;

✔ Exclusive Three-Step Corner Connection Process: Unique overall strength for unparalleled wind pressure resistance and stability;

✔ Exclusive Dual-Row EPDM High-Resilience Airtight Sealing Strips: Height-differentiated three-layer sealing achieves ultimate waterproofing;

✔ Dual-Channel Hardware Groove: Compatible with 360° surround locking points for enhanced sealing and anti-theft performance;

✔ Height-Differentiated Waterproof Design: Top-tier waterproof performance;

✔ Double-Sided Sealing Strips for Opening/Fixed Frames: Cavity injection process ensures stability of the frame and glass;

✔ Side-Mounted Handle Design: Ergonomically optimized for user comfort;

✔ Symmetrical Design for Opening/Fixed Frames: Elevates the aesthetics of window and door design;

✔ G-U (Germany) Outward-Opening Heavy-Duty Hardware: Customized full set of stainless steel accessories.

Advantages

Curtain wall windows are used in multi-story buildings with higher performance demands, while storefronts are simpler, ground-level systems.

◆ Faster Installation: Pre-assembled units reduce on-site labor by 40% (typical project completion in 6-8 weeks).

◆ Custom Flexibility: Tailor dimensions (max. 4.5m height), shapes (curved/angled), and opening methods (fixed, tilt-turn, or automated).

◆ Low Lifetime Cost: Corrosion-resistant hardware and easy-access maintenance points cut long-term upkeep by 60%.

Ideal Applications

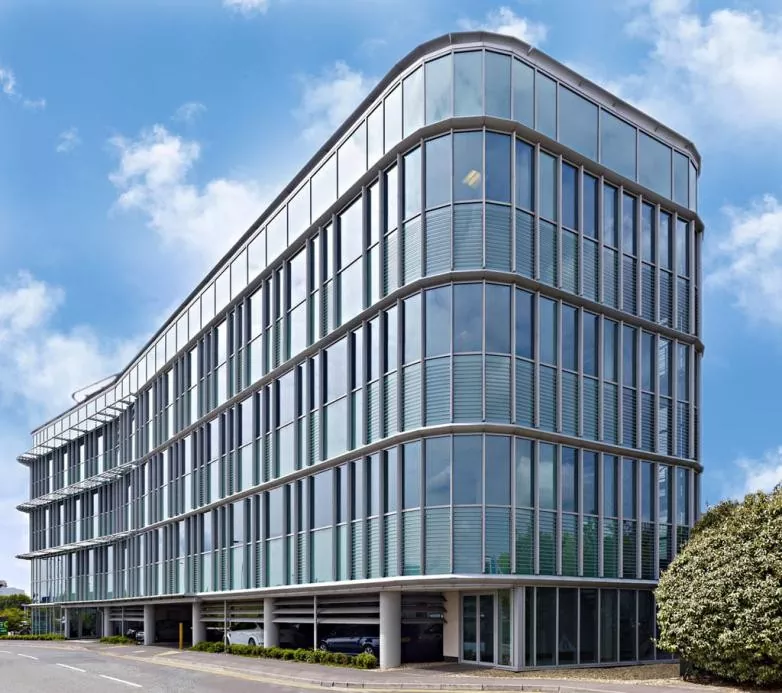

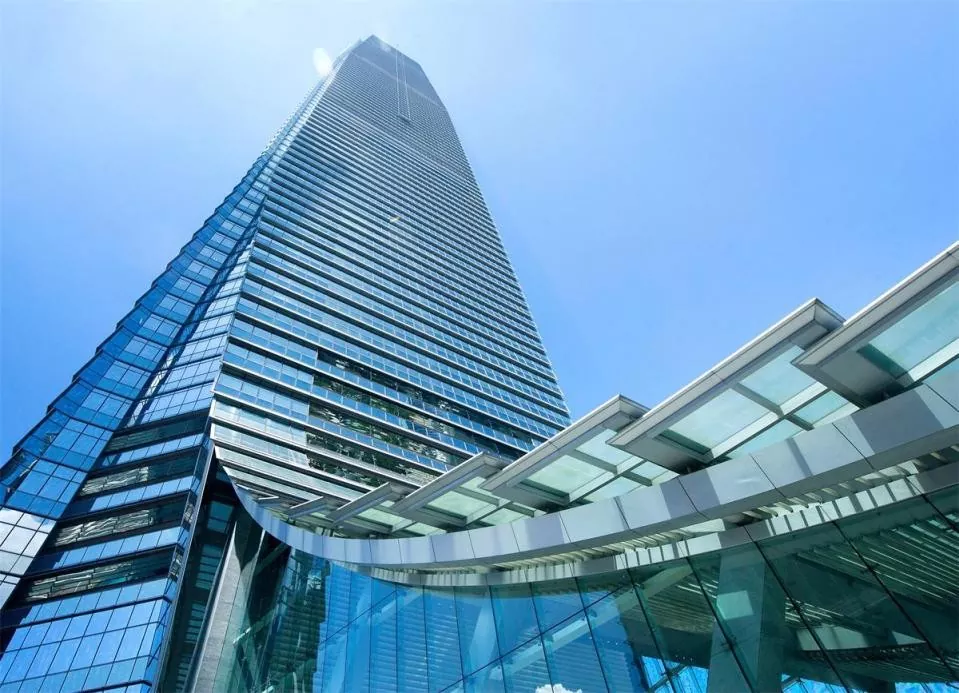

Curtain wall windows are primarily used for modern commercial and high-rise buildings, offering a sleek, visually appealing facade while maximizing daylighting, energy efficiency, and design flexibility.
